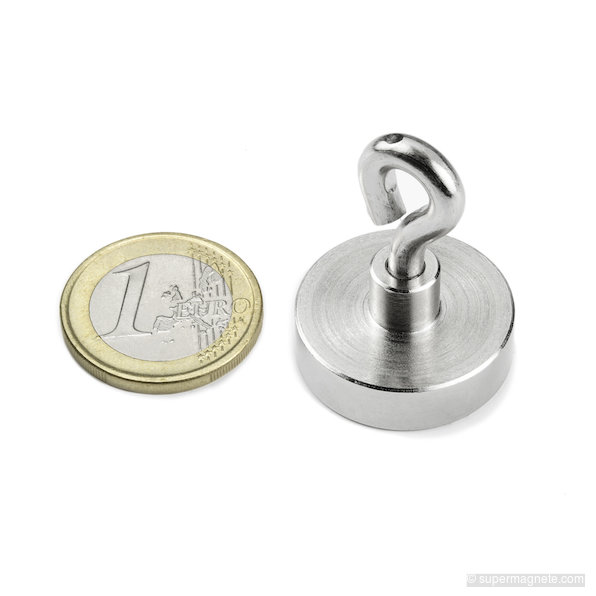

OTN-25 Pot magnet with eyelet Ø 25 mm

thread M4
Available: 4 949 pcs.

Article ID OTN-25
EAN 7640155435420
Material NdFeB
Strength approx. 18 kg (approx. 177 N)
Pot diameter D 25 mm
Neck diameter d 8 mm
Pot height H1 7 mm
Total height without eyelet H2 14 mm
Total height with eyelet H3 30 mm
Thread M 4
Eyelet inside diameter a 4 mm
Magnetisation N38
Coating Nickel (Ni)
Max. working temperature 80°C
Steel Q235 (China)
Weight 29 g
PDF data sheet
  1 pc.   4,03 EUR ea.
from   3 pcs.   3,51 EUR ea.
from   10 pcs.   3,05 EUR ea.
from   20 pcs.   2,82 EUR ea.
from   40 pcs.   2,62 EUR ea.
from   200 pcs.   according to quote

incl. 19% VAT plus shipping
Delivery time Germany: 1 - 3 business days
