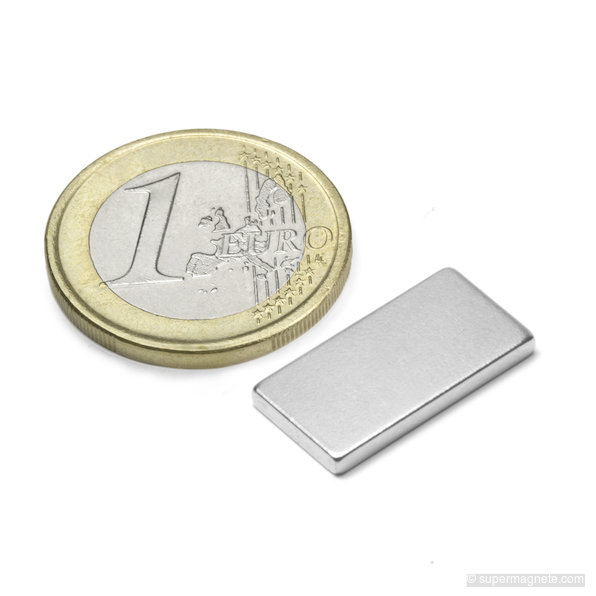

Q-20-10-02-N Block magnet 20 x 10 x 2 mm

Neodymium, N45, nickel-plated
Available: 34 680 pcs.

Article ID Q-20-10-02-N
EAN 7640155436281
Material NdFeB
Shape Block
Size 20 x 10 x 2 mm
Tolerance +/- 0,1 mm
Direction of magnetisation Axis 2 mm
Coating Nickel-plated (Ni-Cu-Ni)
Magnetisation N45
Strength approx. 2,1 kg (approx. 20,6 N)
Max. working temperature 80°C (possibly lower)
Weight 3 g
PDF data sheet
  5 pcs.   0,74 EUR ea.
from   15 pcs.   0,64 EUR ea.
from   40 pcs.   0,56 EUR ea.
from   80 pcs.   0,52 EUR ea.
from   650 pcs.   according to quote

incl. 19% VAT plus shipping
Delivery time Germany: 1 - 3 business days
