R-25-04-05-N

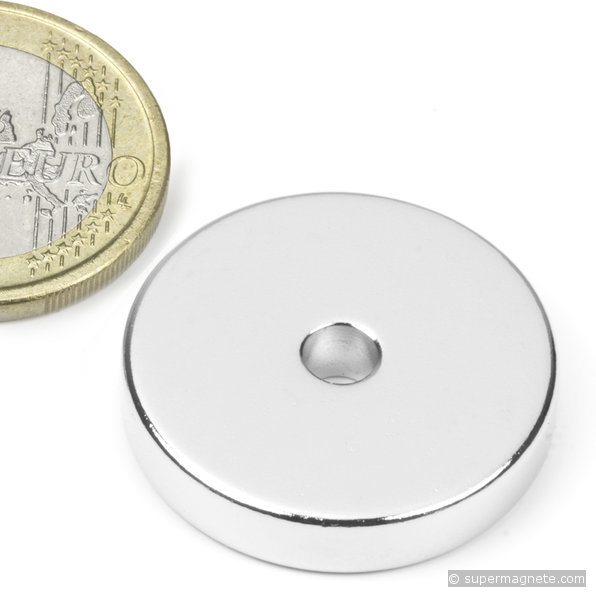

Ring magnet Ø 25/4,2 mm, height 5 mm

Neodymium, N45, nickel-plated

Available: 5 903 pcs.

Article ID R-25-04-05-N
EAN 7640155436861
Material NdFeB
Shape Ring
Outer diameter 25 mm
Inner diameter 4,2 mm
Height 5 mm
Tolerance +/- 0,1 mm
Direction of magnetisation axial (parallel to height)
Coating Nickel-plated (Ni-Cu-Ni)
Magnetisation N45
Strength approx. 9,4 kg (approx. 92,2 N)
Max. working temperature 80°C
Weight 18 g
PDF data sheet
  1 pc.   3,36 EUR ea.
from   3 pcs.   2,94 EUR ea.
from   10 pcs.   2,56 EUR ea.
from   20 pcs.   2,37 EUR ea.
from   40 pcs.   2,21 EUR ea.
from   280 pcs.   according to quote

incl. 19% VAT plus shipping
Delivery time Germany: 1 - 3 business days

Request for quote Ring magnet Ø 25/4,2 mm, height 5 mm
