M-04

Flux detector small

foil to indicate magnetic fields, approx. 75 x 75 mm
promptly deliverable

Description

This Flux Detector makes magnetic fields visible. It's accomplished by a foil filled with nickel particles in a gelatinous suspension. The Flux Detector turns dark in colour when the magnetic field is perpendicular to the foil (for example, near the poles) and turns lighter when the magnetic field runs parallel to the foil.
Other sizes upon request.
Read about more features and tips

Technical data

Article ID M-04
EAN 7640155433372
Height 75 mm
Width 75 mm
Weight 1 g

Recommended accessories for this product

Load...
1 pc.  19,92  EUR ea. *
from 3 pcs.  17,87  EUR ea. *
from 10 pcs.  16,04  EUR ea. *
from 20 pcs.  15,15  EUR ea. *
from 40 pcs.  14,36  EUR ea. *
Ask for a rebate from 160 pcs.
Available: 201 pcs.
1 pc.  7,57  EUR ea. *
from 3 pcs.  6,72  EUR ea. *
from 10 pcs.  5,96  EUR ea. *
from 20 pcs.  5,59  EUR ea. *
from 40 pcs.  5,26  EUR ea. *
Ask for a rebate from 200 pcs.
Available: 1 393 pcs.
1 pc.  16,34  EUR ea. *
from 3 pcs.  14,66  EUR ea. *
from 10 pcs.  13,17  EUR ea. *
from 20 pcs.  12,44  EUR ea. *
from 40 pcs.  11,80  EUR ea. *
Ask for a rebate from 200 pcs.
Available: 794 pcs.
1 set  17,02  EUR/set *
from 3 sets  15,44  EUR/set *
from 10 sets  14,03  EUR/set *
from 20 sets  13,31  EUR/set *
from 40 sets  12,72  EUR/set *
Ask for a rebate from 300 sets
Available: 52 sets

Additional features and tips

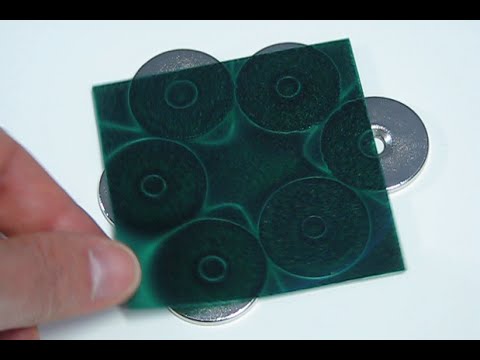

This customer video illustrates beautifully which patterns can be created by different magnets and arrangements.

Click to enlarge
A common fridge magnet made of ferrite.
These magnets are often magnetised in stripes in order to increase the holding force in direct contact with metal. The magnetisation can be nicely seen here with the flux detector.
The detector maintains the last pattern until a new magnetic field is shown. Therefore, the flux detector won't be all green anymore once you started using it, but you'll see dark shadows.
